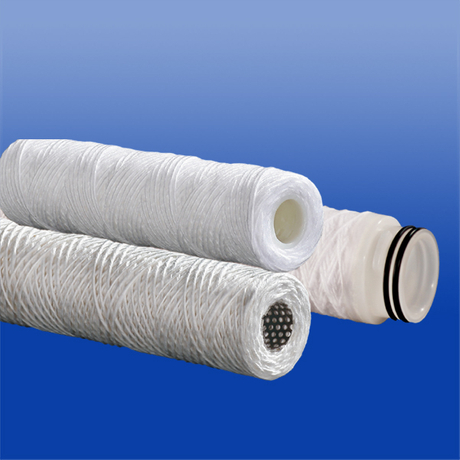

ESW Series String Wound Filter Cartridges are manufactured with structured loose outer layers and tight inner layers to offer true depth filtration for high dirt holding capacity and extremely low media migration. The main advantage of the string wound filter cartridge is its exceptionally high structural strength, therefore, they can withstand higher PSID and severe operating conditions. Economical design makes the filter has more cost advantage to help users reduce costs.
Features |
Broad range of application due to a wide chemical compatibility Many different combinations of filter materials and pore size String Wound depth filter cartridge High dirt holding capacity Economical design,Low cost |
Applications |
Consumer Products Food and Beverage Drinking Water Pharmaceutical Edible Oil Inks & Paints Photographic Plating Solutions Petrochemicals Waste Water Chemicals Oil |
Dimensions |
| Outer Diameter | 60mm ( 2.4” ) , 115mm ( 4.5” ) |
| Inner Diameter | 28mm |
| Length | 9.87”, 10”, 20”, 30”, 40” |
Material of Constructions |
| Max. operating temperatures | PP：80℃ Cotton：120℃ Glass Fiber：200 |
| Max. pressure drop | 2.0 Bar@25℃ |
